- ION (Comes with 4 red lights in back).
- One of Time Outs finest compact cargo trailers on the market...
- Lightweight, easy to load, comfortable to tow with timeless styling...
- Great for Cars ,trucks, motorcycle, SUV's, jeeps, trikes and small cars you can put in your pickup truck bed...
-
- All "ION" cargo trailers has double red LED lights each side... {some photo's below have one each side. 2018 and younger}
`


- All trailers on my web site come with a 5 wire flat plug...
- Can be used on bike or car 5-wire system. Or, plug into car/truck four wire plug system and all lights will work with no modification...
- No converters needed...
All Ion Trailers have4 Red LED lights are on each trailer... Two each side... More visibility... Trailers shown with two lights are same with 2 more added for better visibility...
Standard features:

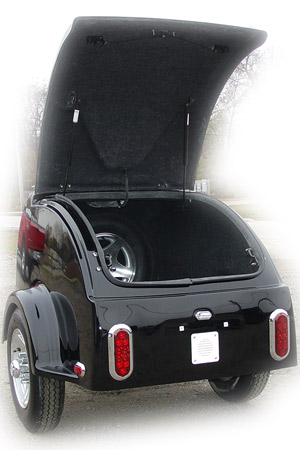

- 4 Red oblong LED taillights in back, Black trailer belpw...
- One-piece durable fiberglass body...
- 700 lb. Torsion Bar Axle...
- License Plate Light...
- Black or White Paint or Gel-coat Primer...
- Interior light 12v.
- Oval Twist Lock Handles with Hidden Key Lock...
- Stainless Steel Hardware...
- LED taillights with chrome trim... Deck mount LED brake light.
- Side marker LED lights...
- Steel frame, aluminum a option...
- Jack stand...
- 23.3 cubic feet of cargo area...
- 5-wire flat wire harness...
- Four Cargo Tie Downs inside. $10.00 option
- 1 7/8 coupler...
- White Steel Wheels...` Aluminum or chrome optional...




- Trailer prices and options 3rd menu button down on right...
Time Out Trailers can generally be shipped out within two weeks...
"ION" has very thick fiberglass body like the Dart trailers...
`
Most popular trailer
NOTES:
The black trailer has optional chrome wheels...Popular with black trailers as well as the aluminum wheels...
- Wheels all Aluminum look or Aluminum with black center. Sharp...
- Chrome wheels with chrome center cap and lug nuts
- White with chrome center cap and lug nuts.
White trailers look good with white spoke wheels...All trailers look great with aluminum wheels...
All trailers have chrome center cap and chrome lug nuts...

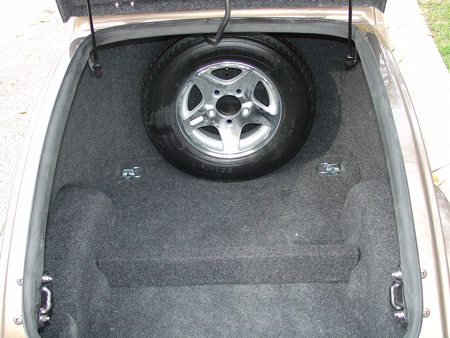

Ion showing optional wheel and carrier. no longer inside trailer... Took up huge cargo part of the 23.5 cu ft storage and hard to get at...
Wheel now mounts under trailer in back of axle... Doing this also took weight off of tongue...

Trailer below is a nice two tone paint job tastefully done...

`
Specification <> ION Trailers
Trailer Description |
Area or size |
Cargo Space |
23.3 Cubic Feet |
Chassis |
Steel, Aluminum optional |
Body, exterior |
48" x 44" x 28" {L x W x H} |
Empty Weight |
240 pounds |
Lights |
LED with 3rd Brake Light |
Wheel size |
12" x 4.5" |
Tire size |
5.30-12 LRC |
Axle |
Torson suspension 1000 lb. rating |
Overall length |
91" long 41" high 44" wide |
Hitch weight |
30 lbs |
Max load rating |
760 lbs. Vehicles |
Max load, bikes |
450 lbs. |
Tongue weight |
23 lbs. |
|
|

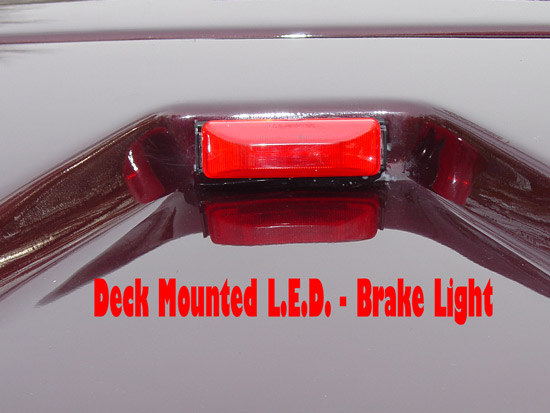

< << Third brake light...
- Rack and decals not available... Black or white. N color match...
- Trailer prices and options 3rd menu button on right top...
Thank You and see you on the next page...
Karen & Fred Burger...
